80 PLUS Gold efficiency certification
Equipped with Gen5 12V-2x6 PCIe connector, meeting Intel ATX3.0/3.1 specification standard
Latest PCIe Gen 5 standard to support up to 2X power excursion
24/7 continuous power output with 50?operating temperature
Silent running 120mm fan with advanced semi-fanless operation
Compact design with a 140mm depth for easy integration

Colour
White

Max DC Output
850W

Power Density
471W/L

Combined +3.3V & +5V
100W

Combined +12V
850W

Input Voltage
90 ~ 264 Vrms

Input Frequency Range
47Hz ~ 63Hz

PFC
Active PFC (PF>0.9 at full load)

Efficiency
87% & <89%

MTBF
100,000 Hours

Operating Temperature
0°C ~ 50°C

Protection
Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection Under Voltage Protection

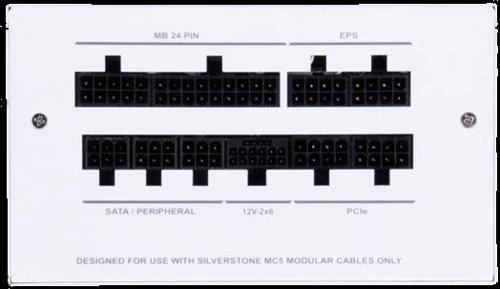

Connectors
1x 24 / 20-Pin motherboard connector 2x 8 / 4-Pin EPS / ATX 12V connector 4x 8 / 6-Pin PCIe connectors 1x 12V-2x6 connector 8x SATA connectors 4x 4-Pin Peripheral connector

Cooling System
Silent 120mm fan

Noise Level
0 dBA minimum

Certification
80 PLUS Gold

Form Factor
ATX (PS2)

Dimensions
150mm (W) x 86mm (H) x 140mm (D)

Weight
2.13kg
