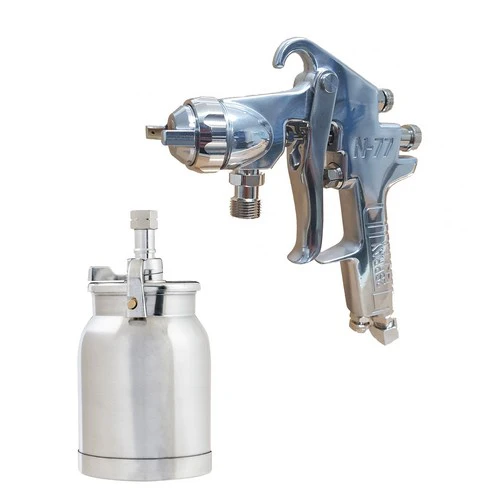

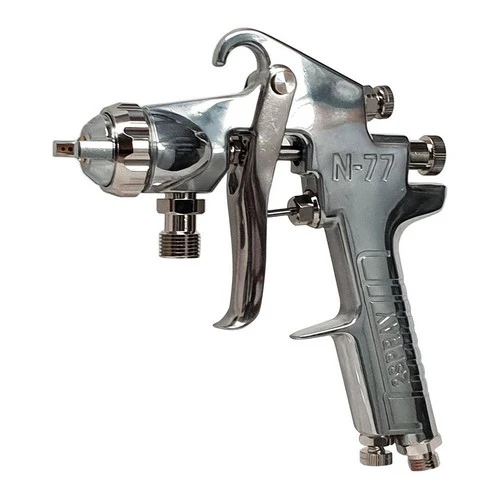

IWATA 2SPRAY SUCTION SPRAYGUN N77 2.0MM + 1L PS1000 POT
IWATA 2SPRAY SUCTION SPRAYGUN N77 2.0MM + 1L PS1000 POT
A well balanced general purpose spraygun, with built-in air adjuster. Excellent for standard production requiring fine finishes.
Compact head design
Polished body for easy cleaning
Comfortable to use.
High atomization
Excellent manoeuverability
A well balanced general purpose spraygun, with built-in air adjuster. Excellent for standard production requiring fine finishes.
Compact head design
Polished body for easy cleaning
Comfortable to use.
High atomization
Excellent manoeuverability
| Part No. | Fluid Nozzle Size [mm] | Air Pressure @ Gun Inlet [bar] | Air Consumption [l/min] | Fluid Output [ml/min] | Fan Pattern [mm] | Cap # | Pot type / size |
|---|---|---|---|---|---|---|---|
| N77.1LA | 1.5 | 3.5 | 180 | 255 | 210 | 1 | LA.1000 |
| N77.11LA | 1.5 | 3.5 | 290 | 255 | 260 | 11 | LA.1000 |
| N77.12LA | 1.5 | 3.5 | 370 | 255 | 230 | 12 | LA.1000 |
| N77.2LA | 2.0 | 3.5 | 250 | 245 | 255 | 2 | LA.1000 |
| N77.21LA | 2.0 | 3.5 | 340 | 350 | 270 | 21 | LA.1000 |
| N77.3LA | 2.5 | 3.5 | 325 | 435 | 280 | 3 | LA.1000 |
$155.60
Original: $444.58
-65%IWATA 2SPRAY SUCTION SPRAYGUN N77 2.0MM + 1L PS1000 POT—
$444.58
$155.60Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
IWATA 2SPRAY SUCTION SPRAYGUN N77 2.0MM + 1L PS1000 POT
A well balanced general purpose spraygun, with built-in air adjuster. Excellent for standard production requiring fine finishes.
Compact head design
Polished body for easy cleaning
Comfortable to use.
High atomization
Excellent manoeuverability
A well balanced general purpose spraygun, with built-in air adjuster. Excellent for standard production requiring fine finishes.
Compact head design
Polished body for easy cleaning
Comfortable to use.
High atomization
Excellent manoeuverability
| Part No. | Fluid Nozzle Size [mm] | Air Pressure @ Gun Inlet [bar] | Air Consumption [l/min] | Fluid Output [ml/min] | Fan Pattern [mm] | Cap # | Pot type / size |
|---|---|---|---|---|---|---|---|
| N77.1LA | 1.5 | 3.5 | 180 | 255 | 210 | 1 | LA.1000 |
| N77.11LA | 1.5 | 3.5 | 290 | 255 | 260 | 11 | LA.1000 |
| N77.12LA | 1.5 | 3.5 | 370 | 255 | 230 | 12 | LA.1000 |
| N77.2LA | 2.0 | 3.5 | 250 | 245 | 255 | 2 | LA.1000 |
| N77.21LA | 2.0 | 3.5 | 340 | 350 | 270 | 21 | LA.1000 |
| N77.3LA | 2.5 | 3.5 | 325 | 435 | 280 | 3 | LA.1000 |
