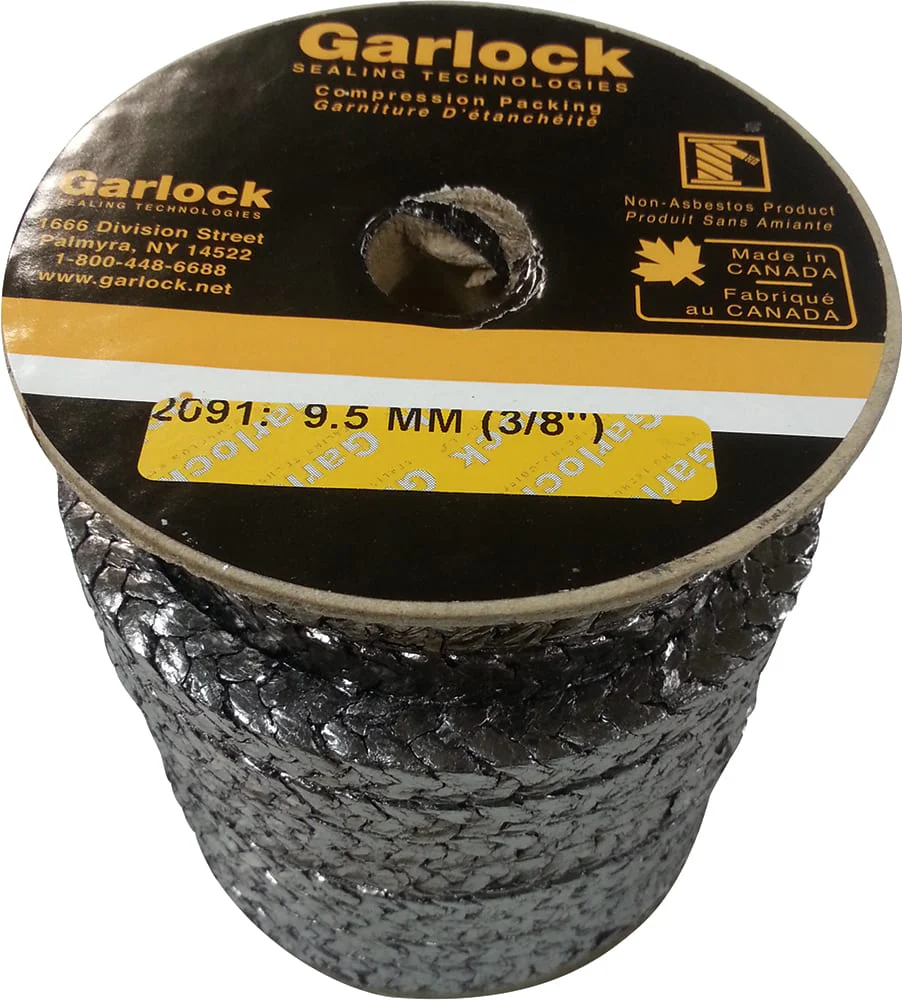

Garlock Style -2091 Graphite Packing 89m X 3mm
Style 2091 consists of pure expanded flexible graphite extruded over a Stainless Steel wire core to form the yarn which is then used in braiding the packing. The finished braid is non-scoring.
Suitable in steam with high temperature/pressure combinations.
Less scoring of the stem as the Stainless Steel wire is encapsulated.
Superior sealing properties than expanded pure graphite rings.
Good thermal conductivity.
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Brand
Garlock Style-2091
Mfr Part No
41691-1208
Min Temp & Max Temp
-200 OC (-328 OF) & +455 OC (+850 OF)
p/H Range
0 - 14 (except strong oxidisers)
Maximum Shaft Speed
Valve Only
Pressure
310 Bar
Suitable in steam with high temperature/pressure combinations.
Less scoring of the stem as the Stainless Steel wire is encapsulated.
Superior sealing properties than expanded pure graphite rings.
Good thermal conductivity.
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Brand
Garlock Style-2091
Mfr Part No
41691-1208
Min Temp & Max Temp
-200 OC (-328 OF) & +455 OC (+850 OF)
p/H Range
0 - 14 (except strong oxidisers)
Maximum Shaft Speed
Valve Only
Pressure
310 Bar
$401.56
Original: $1,147.31
-65%Garlock Style -2091 Graphite Packing 89m X 3mm—
$1,147.31
$401.56Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Style 2091 consists of pure expanded flexible graphite extruded over a Stainless Steel wire core to form the yarn which is then used in braiding the packing. The finished braid is non-scoring.
Suitable in steam with high temperature/pressure combinations.
Less scoring of the stem as the Stainless Steel wire is encapsulated.
Superior sealing properties than expanded pure graphite rings.
Good thermal conductivity.
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Brand
Garlock Style-2091
Mfr Part No
41691-1208
Min Temp & Max Temp
-200 OC (-328 OF) & +455 OC (+850 OF)
p/H Range
0 - 14 (except strong oxidisers)
Maximum Shaft Speed
Valve Only
Pressure
310 Bar
Suitable in steam with high temperature/pressure combinations.
Less scoring of the stem as the Stainless Steel wire is encapsulated.
Superior sealing properties than expanded pure graphite rings.
Good thermal conductivity.
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Brand
Garlock Style-2091
Mfr Part No
41691-1208
Min Temp & Max Temp
-200 OC (-328 OF) & +455 OC (+850 OF)
p/H Range
0 - 14 (except strong oxidisers)
Maximum Shaft Speed
Valve Only
Pressure
310 Bar
